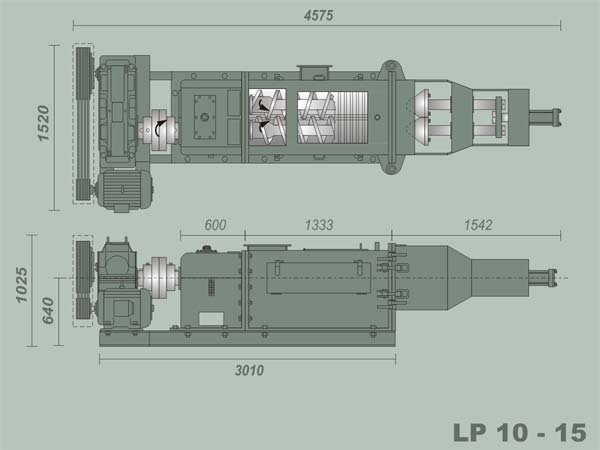

LP 10 - 15


Worm Dimension
Machine Length
Machine Width
Machine Height
Power Consumption
Net Weight
10 -15 Tons FFB/Hour
Horizontal Double Screw Worm
278 mm Diameter x 1020 Long
10 - 13 rpm
4575 mm approx.
1520 mm approx.
1025 mm approx.
22 KW/30 HP TEFC Motor
5000 kgs approx.
Hydraulic Unit

Working Pressure
Tank Capacity
Power Consumption
Automatic Reaction Cone Control
System Constant Pressure Type
600 - 1200 psi
60 litres
810 mm x 645 mm x 405 mm
1.5 KW/2 HP TEFC Motor
Speed Reducer Helical Geared Unit c/w Safety Slipping
Clutch Pulley

The manufacturer reserve the right to modify for alter the design of the machine that seem necessary without prior notice.
