| Capacity | 10 Metric Tons/Hour |
| Resolution | Variation Speed 12 RPM - 76 RPM |
| Power Consumption | 2 x 11 kW/15HP 4 poles class F TEFC Squirell Cage Motor |
| Reducer | Horizontal Gear Unit Ratio Apporx. 40:1 |
| Feeding Chamber | 2 x 1.1 kW/1.5HP 36 RPM Poles Class F TEFC Squirell Cage Motor |

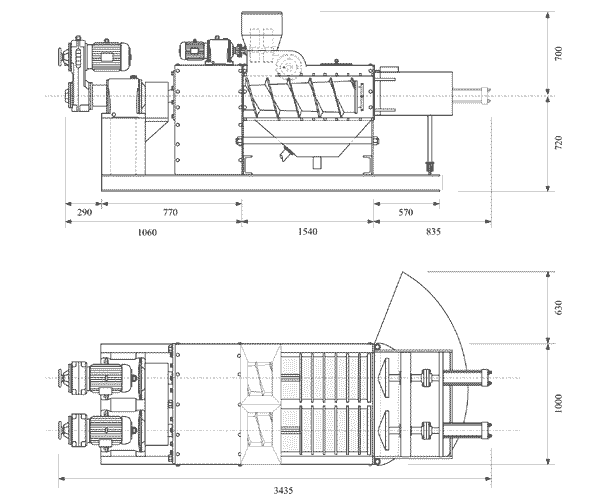

| Worm Dimension | Dia. 300 x 800 mm |
| Pressing Chamber | Dia. 305/311 x 953 mm |
